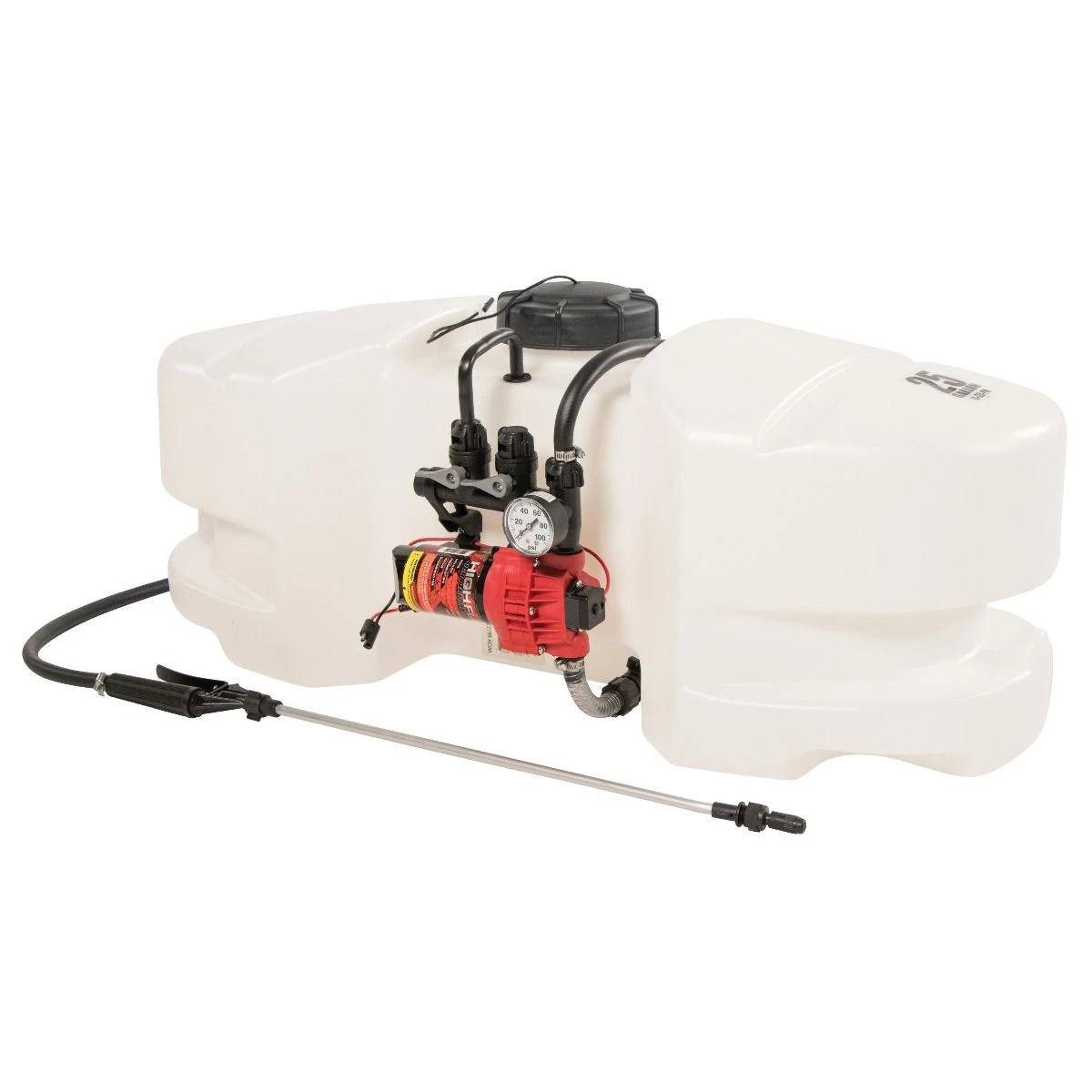

FIMCO 15 US Gallon (57LT) ATV Spray Tank

15 US Gallons – 57 L spray tank for quad bikes, ATV, mules and medium tractors

9 L/min (2.4 gallon/min) High Flo spray pump – big enough for all spray booms reaching out to 3.8m width

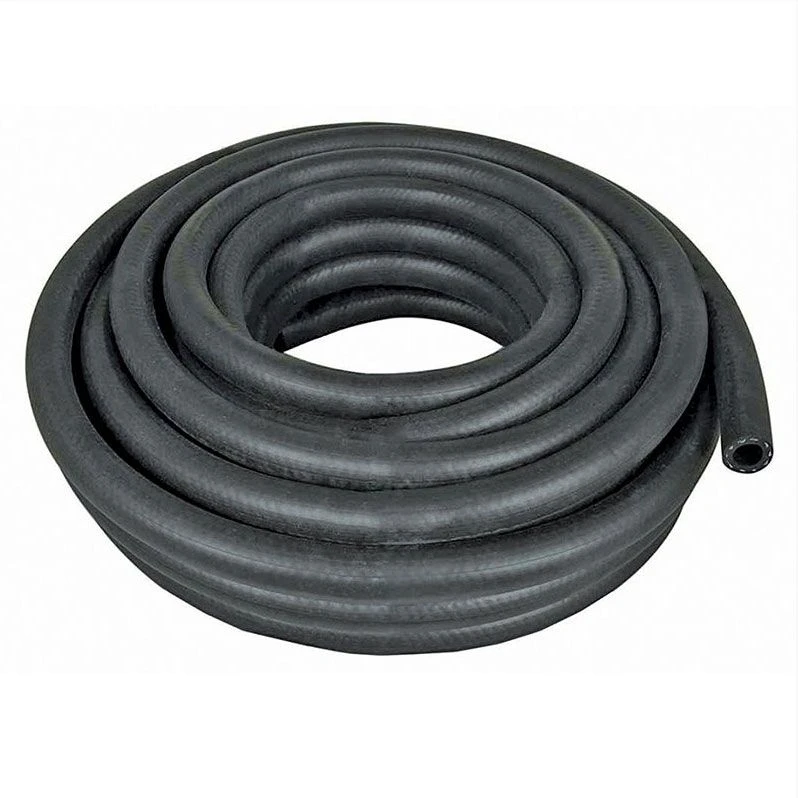

Includes 5m flexible hose & hand lance for demounted and spot spraying

Key points:

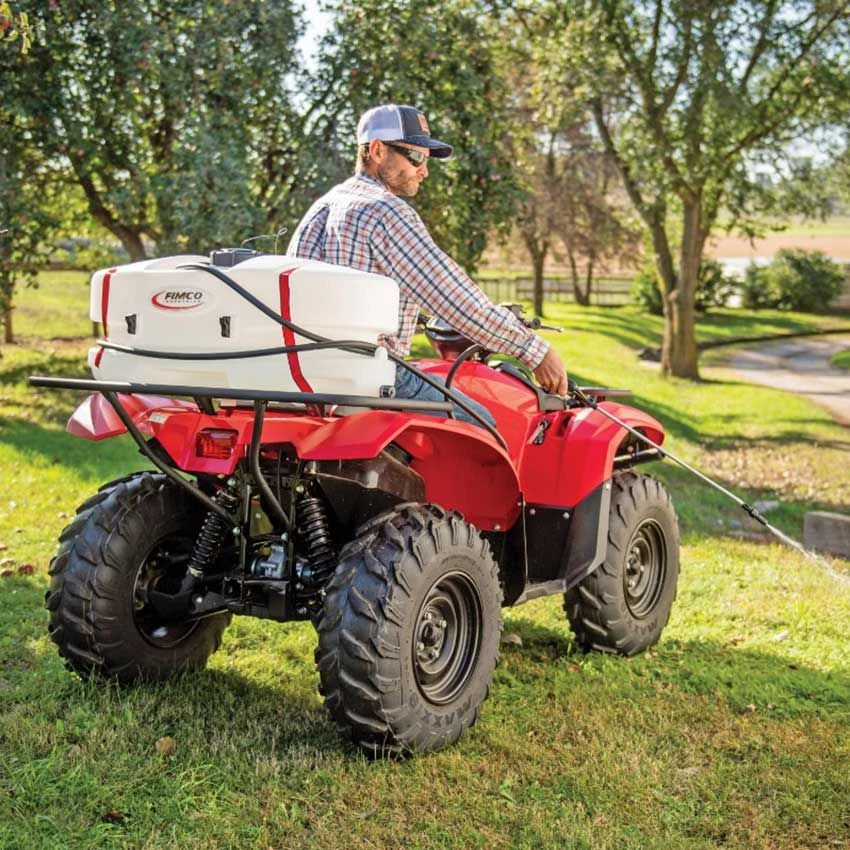

• Fitst on the front or rear panniers of a quad bike or ATV with ratchet strap (not supplied)
• 125mm tank lid for easy filling and drain plug for easy emptying
• Suitable for adding: 2 nozzle, 5 nozzle & 7 nozzle quick release booms for paddock, lawn and field spraying
• Crocodile clips for easy attachment to vehicle battery and an in-line switch for on/off

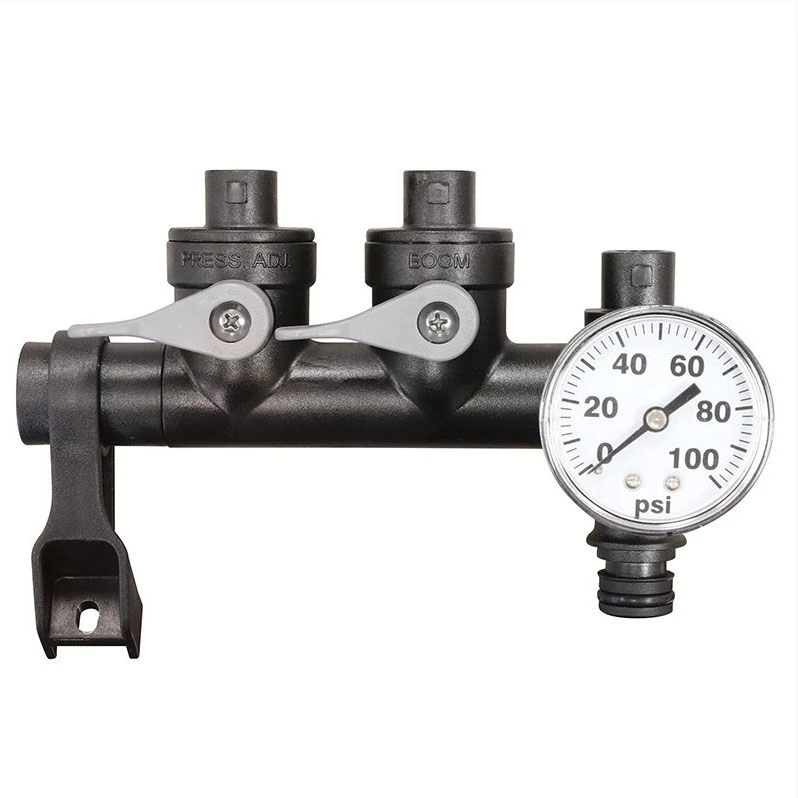

• Visual, adjustable pressure gauge and handy clip for neat spray handgun storage on the tank
• Pump manifold for selecting between boom & hand lance

Electrical System Requirements:

Electrical connection: 12V DC

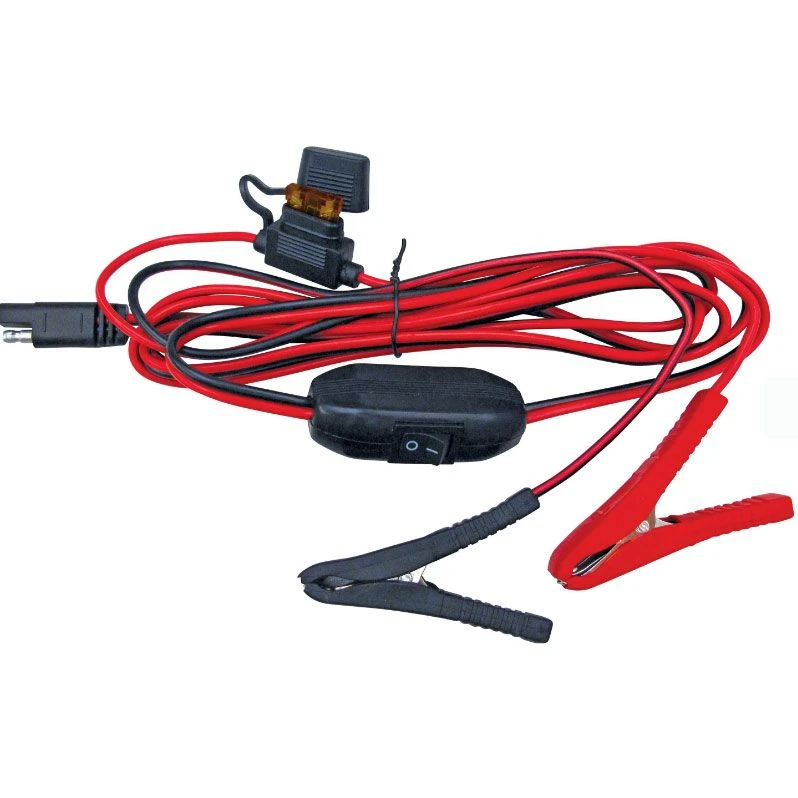

2.4m quick connection electrical leads with in-line on/off switch



Sprayer Specification:

Maximum flow: 9 L/min

Maximum pressure: 60 PSi

Maximum tank capacity: 57 litre



Specification:

Dimensions	1000 (length) x 370 (width) x 400 (height)
Weight Empty	9 kg
Capacity	57 L
Spares	Available
